Description

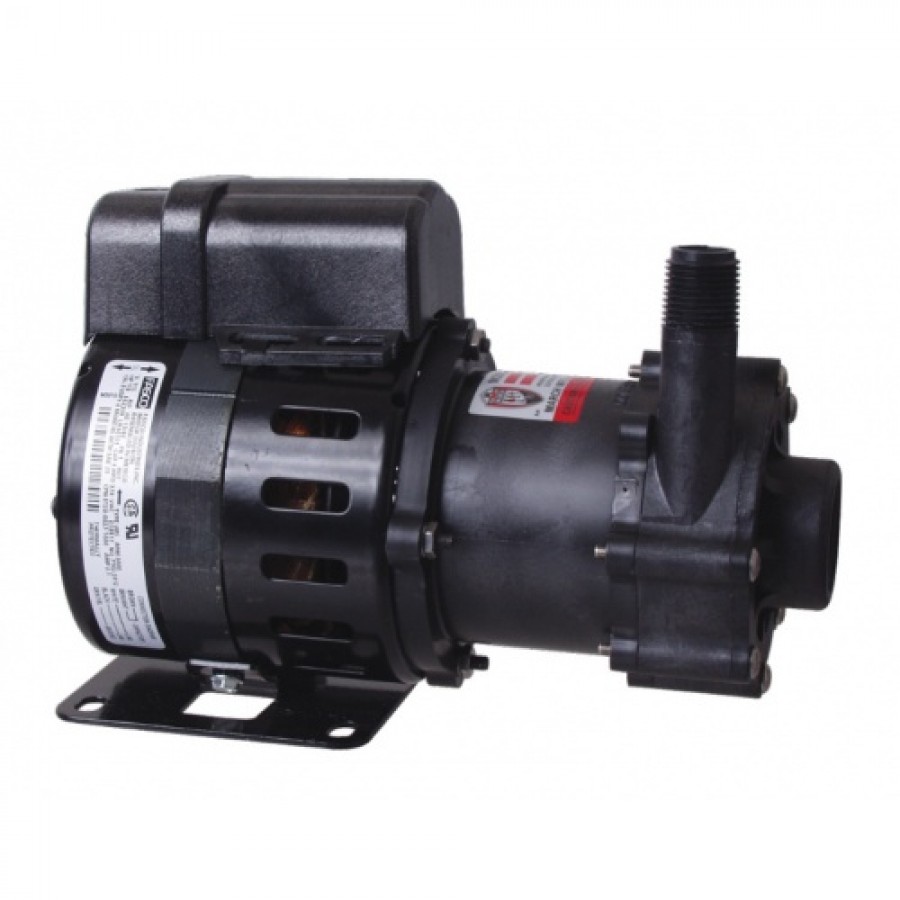

Designed for the small ‘Nano’ commercial brewery where the H315 series is too small but you don’t yet need a full on expensive professional brewery pump. The March Nano Brewery Pump features a robust flow rate of 17 GPM with all the benefits brewers have come to expect from March magnetic drive pumps. Those features include the ability to throttle back flow and the use of food-grade materials where the beer is in contact with the pump.
*Please Note* – This pump must be taken apart and cleaned after every use to prevent the impeller from seizing. To do so, take the bolts out of the pump head, remove the pump head from the pump, then take the impeller shaft and actual impeller apart. Clean well, and reassemble.
Homebrewing Tips:
1. Great for Whirlpooling 20 gallons of wort or more.
2. Ideal for our Counterflow Chillers WC90.
Please note that the pump comes with a three foot cord WITHOUT a plug attached. It has a 16 gauge 3 wire setup.
Statistics
Motor: 1/8HP 110v/60Hz Max Flow: 17 G.P.M at zero head
Max Head: 27 ft. at 1 GPM
Inlet: 1″ FPT
Outlet: 1/2″ MPT
Materials in Contact with Beer
Polysulfone
Stainless Steel
Buna N
Ceramic
18.6 foot maximum head (around 8 psi)
The wet end is made from Stainless Steel, Teflon, Silicone, and Ryton/Teflon/Glass
Inlet and Outlet are both 1/2″ MPT
Single phase 115V or 230V 0.04 Horsepower fan cooled motor can be run at either 50 or 60 hertz
6 foot power cord
150 psi max internal pressure
250 Fahrenheit or 121 Celsius max liquid temperature
