BrewBuilt™ SlingBlade Electric Heating Element – 31 gallon

The BrewBuilt SlingBlade’s unique crescent-shaped design promotes a rolling boil and even heat distribution. This electric heating element places all of the heating power on one side of the kettle, sending thermal energy upward to the surface that then cascades downward on the opposite side of the kettle. This movement creates a natural turbulence that evenly distributes heat while creating a vigorous boil. By being located on one side of the kettle, the other side is clear for immersion chillers, and the curved shape won’t obstruct the flow of wort during whirlpool. Thanks to the non-circular design, the SlingBlade can easily be installed on any kettle with a 1.5″ tri-clamp ferrule. This also makes removing the element for cleaning between uses a breeze.

The SlingBlade heating elements were designed to fit perfectly with BrewBuilt brewing kettles, but you may find them suitable for other kettles as well. They should be used with T.C. ferrules no longer than 1″ in length. For dimensions and recommended minimum kettle diameter, please see the chart below.

Features:

Made from Stainless Steel with proprietary coating for long life
1.5″ Tri-Clamp connection
Unique offset design promotes rolling boil
Ultra-Low Watt Density eliminates scorching
UL Certified components
Specs:

240 Volt
L6-30 plug
20 Amp breaker required for 10 & 15 gal element
30 Amp breaker required for 22 & 31 gal element
50-gallon kettle requires 2 x BE538 and 2 x 30 amp circuits

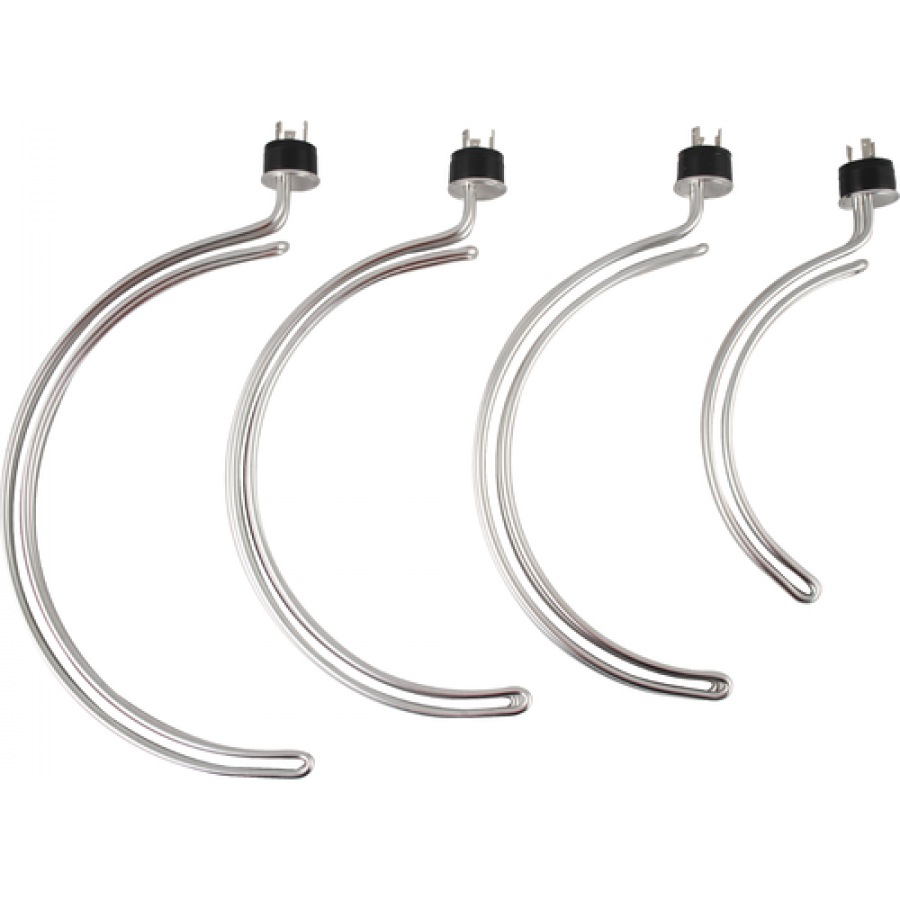

SKU Size Wattage Length Radius Min. Kettle Ø
BE535 10 gal 3750 13.25″ 6.3″ 13.75″
BE536 15 gal 4500 16.75″ 7.3″ 15.75″
BE537 22 gal 5000 17.25″ 8.3″ 17.75″
BE538 31 gal 5750 19.5″ 9.3″ 19.75″
Please note: Length is measured from the tip of the heating element to the T.C. connection. Radius is measured from the middle of the T.C. connection to the outermost edge of the element’s curve.

***In order to avoid injury or death we strongly recommend using a GFCI in any circuit used near water.
